Bőszeles vitorla betekerő

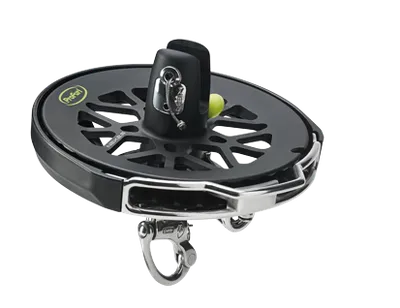

Gennaker betekerő NEX 2,5 V2
752 000 Ft
Az ár az áfát tartalmazza.
1
CikkszámPR-NEX-2,5
KategóriaBőszeles vitorla betekerő
A termékről
Technical description
| Name : | NEX 2.5 |
| Model : | With spool |
| Boat length : | From 12 to 14 m |
| Working load : | 2.5T |
| Type of sails : | for light sails (gennaker, code zero) and heavy sails (solent, staysail...) |
| Lower terminal : | Clevis snap shackle |
| Upper terminal : | Halyard shackle: MX |
| Anti twist torque rope Ø : | max 12 mm (1/2'') |
| Continuous line Ø : | 10mm (25/64'') |
| Weight / spool : | 0,800 Kg - 1,76 Lbs |
| Weight / swivel : | 0,310 Kg - 0,68 Lbs |
| Height / drum mechanism : | 82,9 mm - 3 17/64'' inch |
| Drum diameter : | 150 mm - 5 7/8'' inch |
| Height / swivel : | 69,6 mm - 3 17/64'' inch |
| Width / swivel : | 42 mm - 1 5/8'' inch |
| Furling line : | No delivered |
| Warranty : | 3 year |
Accessory
- Wichard forged D shackle: option
- Aluminium thimbles: option
- Furling line - standard or customized length: option
- Anti-twist torque rope: option
Material
- Maintenance free systems sealed in grease bath (except the NEX 0.9)
- Specific coating to ensure longer product life
- Wichard clevis pin snap shackle forged in High Resistance stainless steel (17/4 PH)
- Wichard halyard shackle (MX8) forged in High Resistance stainless steel (17/4 PH)
